Rubber Black Crawler 305*103.7*20 for Snowmobile with Metal Slider
1) Product Information:
Commodity: Snow mobile rubber track
Width305 x Pitch103.7 x Link20
Weight : 6.3Kg/ pc
Application : snowmobile, rubber track system...ect.
2) About us
Shanghai PuYi Industrial Co., Ltd, the Expert on Rubber Track
High Quality
Competitive Price
Shanghai PuYi Industrial Co., Ltd Mainly produce Rubber Tracks in China. With Rubber Factory in Shanghai we are strong in offering various of Rubber Tracks for: Crawler, Bulldozer, Excvavtor, Asphalt Paver, (Mini)Harvester, Snowblower, Snowmobile, Wheelchair, Robot...Etc.
Yanmar, Terex, Kubota, Bridgestone Rubber Tracks...OEM are available.
3) Type of rubber tracks:
1). Continuous rubber track
2). Conventional type or interchangeable type rubber track
3). Warranty: Guarantee one year under normal use
4). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine
4 ) The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
| size : Width*pitch |
| 170*50 |
| 254*64 |
| 380*64 |
| 500*64 |
| 254*65 |
| 310*50.5 |
| 380*50.5 |
| Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links |
| 130*72 | 28-53 | 300*52.5K | 72-84 | 400*72.5KW | 68-92 |
| 150*60 | 28-49 | 300*52.5KW | 72-92 | 400*74 | 68-76 |
| 150*72 | 29-40 | KB300*52.5 | 72-92 | 400*75.5K | 74 |
| 170*60 | 30-40 | KB300*52.5N | 72-98 | B400*86 | 52-55 |
| 180*60 | 30-40 | JD300*52.5N | 72-98 | 400*90 | 42-56 |
| 180*72 | 30-58 | 300*53K | 80-84 | Y400*142 | 36-37 |
| 180*72K | 30-37 | 300*55 | 70-86 | 400*144 | 36-41 |
| B180*72K | 34-51 | 300*55.5K | 76-82 | Y400*144K | 36-41 |
| B180*72A | 30-51 | 300*71K | 72-55 | 420*100 | 50-58 |
| H180*72 | 30-50 | 300*109N | 25-42 | 450*71 | 76-88 |
| 190*60 | 30-40 | K300*109 | 37-41 | DW450*71 | 76-88 |
| 190*72 | 34-39 | 300*109WK | 35-42 | 450*73.5 | 76-84 |
| 200*72 | 34-47 | B300*84 | 78-52 | 450*76 | 80-84 |
| 200-*72K | 37-47 | T300*86K | 48-52 | 450*81N | 72-80 |
| 230*48 | 60-84 | 320*52.5 | 72-98 | 450*81W | 72-78 |
| 230*48K | 60-84 | B320*52.5 | 68-98 | KB450*81.5 | 72-80 |
| 230*72 | 42-56 | 320*54 | 70-84 | K450*83.5 | 72-74 |
| 230*72K | 42-56 | B320*86 | 49-52 | B450*84 | 53-56 |
| 230*96 | 30-48 | 320*90 | 52-56 | B450*86 | 52-55 |
| 230*101 | 30-36 | 320*100 | 38-54 | 450*90 | 58-76 |
| 250*47K | 84 | 320*100W | 37-65 | KU450*90 | 58-76 |
| 250*48.5K | 80-88 | Y320*106K | 39-43 | T450*100K | 48-65 |
| 250*52.5K | 72-78 | 350*52.5 | 70-92 | K450*163 | 38 |
| 250*72 | 47-57 | 350*54.5K | 80-86 | 485*92W | 74 |
| B250*72 | 34-60 | B350*55K | 77-98 | 500*90 | 76-82 |
| B250*72B | 42-58 | 350*56 | 80-86 | 500-92 | 72-84 |
| E250*72 | 37-58 | 350*75.5K | 74 | 500*92W | 78-84 |
| 250*96 | 35-38 | 350*90 | 42-56 | 500*100 | 71 |
| 250*109 | 35-38 | 350*100 | 46-60 | K500*146 | 35 |
| 260*55.5K | 74-80 | 350*108 | 40-46 | 600*100 | 76-80 |
| Y260*96 | 38-41 | 350*109 | 41-44 | 600*125 | 56-64 |
| 260*109 | 35-39 | Y370*107K | 39-41 | 700*100 | 80-98 |
| 280*72 | 45-64 | 400*72.5N | 70-80 | 750*150 | 66 |
| Y280*106K | 35-42 | 400*72.5W | 68-92 | 800*125 | 80 |
| 300*52.5N | 72-98 | Y400*72.5K | 72-74 | | |

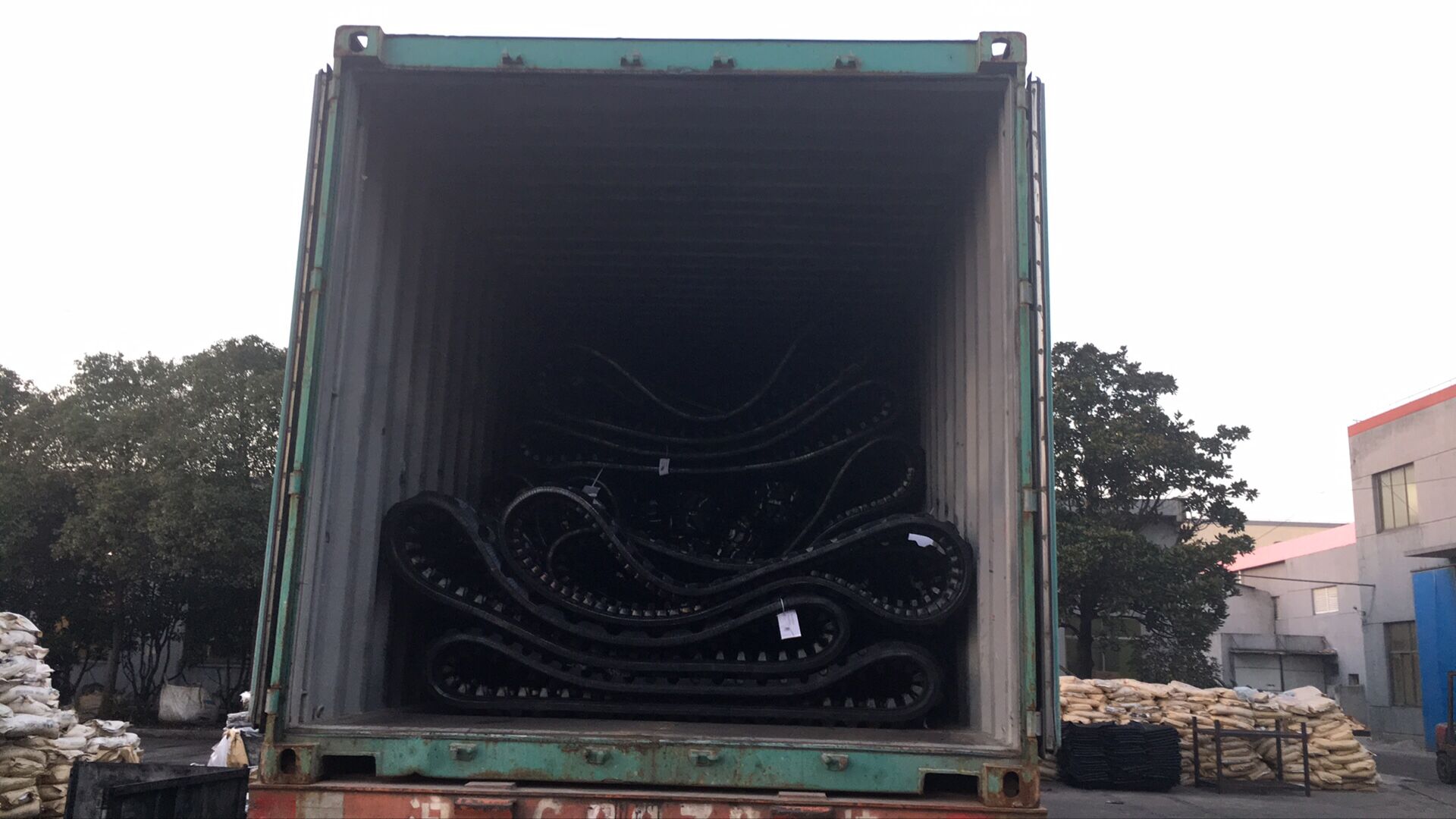

container photo:
